Trombik Spring Elements
Trombik Spring Elements are applied as vibration isolation devices / spring suspension for machines, equipments, buildings and railroads by a system of springs. Two different categories have to be separated: source isolation of machines and installations (e.g. elastic support of turbines, condensers, feed pumps, sledge hammer and presses) and receiver isolation as protection for delicate machines and installations, against all kind of vibrations including earthquakes.
Trombik spring elements are protected by patent law and are manufactured on behalf of Trombik Engineers Ltd.
High Accuracy Spring Elements
We produce a complete range of high accuracy spring supports for high and highest loads. The height-adjustable Trombik spring elements have been enhanced and optimised based on long lasting experience and can be applied to all load areas and purposes. For the main part, built up of disc springs, as well as for the casing parts, materials of the highest quality class are used. Special designs for clients and/or for objects, e.g. helical spring layouts or adapted load areas are possible as well.
SPRINGLIFT System
Spring Types (Standard Configurations)

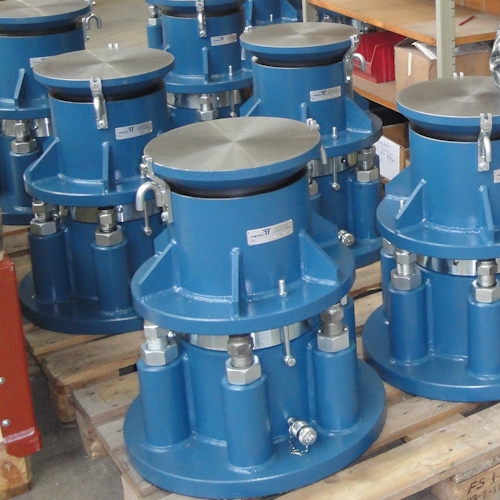

INTEGRAL
Designation
I-120-100-4×1
1’000 kN
Installation Height

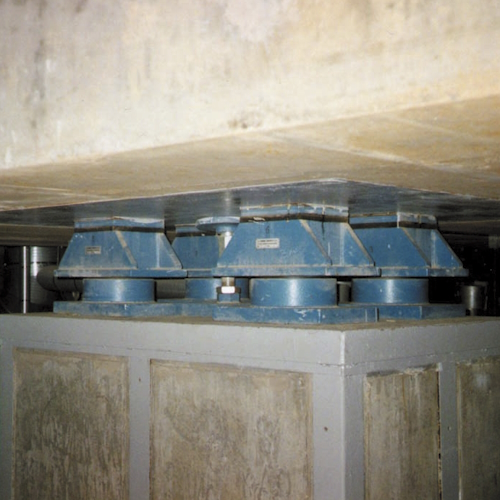

PRIMO
Designation
PR-100-100-4×1
1’000 kN
Spring Stiffness
Installation Height
410 mm

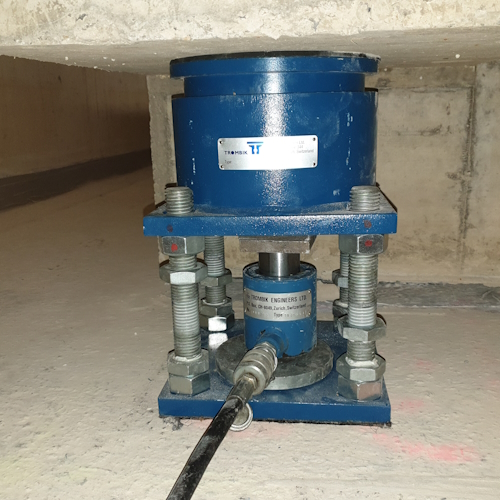

4B
Designation
4B-50-X0-4×1
200 – 500 kN
Spring Stiffness
14.5 – 25.3 MN/m
Installation Height
500 mm

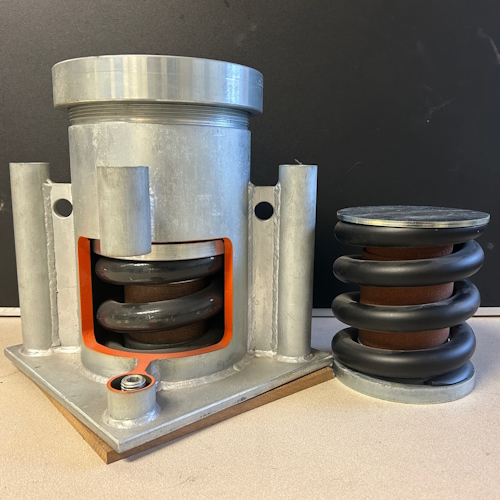

BF
Designation
BF-2.5-500
25 kN
Spring Stiffness
Installation Height
500 mm
Quotation requests / orders: Contact our specialists directly so that we can provide you with a tailor-made quotation:
Trombik Springs
c/o Trombik Engineers Ltd.
Limmattalstrasse 344
8049 Zürich, Switzerland
Phone
Email
Services Offered
Trombik Engineers Ltd. attaches particular importance to structural dynamics, especially in the field of machine foundations. Thanks to international projects in the field of large infrastructure constructions and power plants, the company has many years of experience with machine foundations and elastic bearings. All employees are very familiar with the associated issues.
Engineering

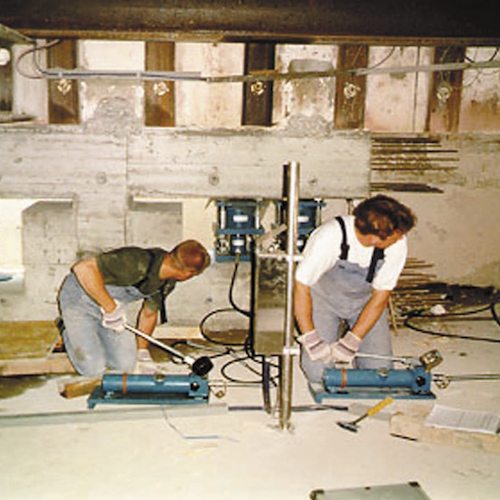

Revision and Maintenance Work
Trombik Spring Elements are high-quality products and are insensitive to external influences. They are often used in accordance with long term operation machine units, so periodical revision and maintenance work on the Spring Elements have to be carried out. By checking and overhauling the functionality, the vibration-isolation between the machine foundation and the substructure can be granted. At the same time the spring load distribution will be equalised and if necessary deformations of the foundation table can be readjusted
Areas of Application

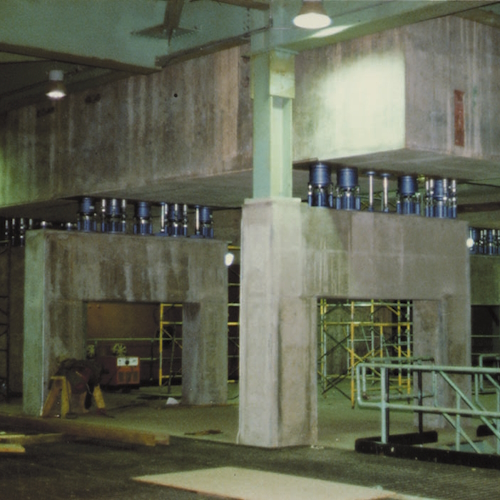

Machine Foundations
Spring elements are used to achieve a clearly defined and therefore extremely effective, finely tuned system.
Building Decoupling
For increased comfort requirements or sensitive equipment, entire buildings can also be decoupled, usually in the area of the ceiling above the basement.

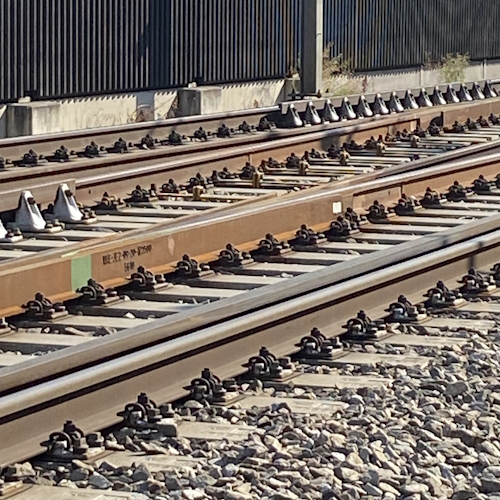

Railway / Tram systems
Manufacturing Plants

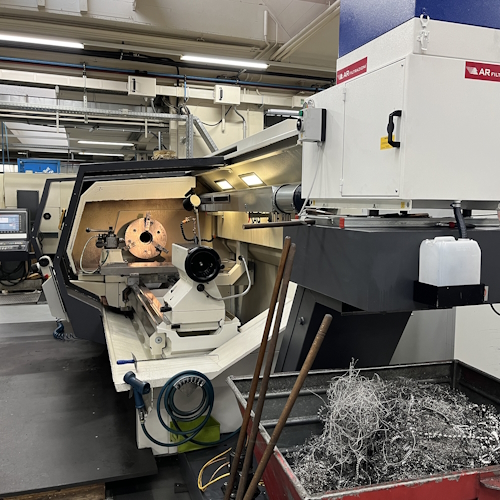

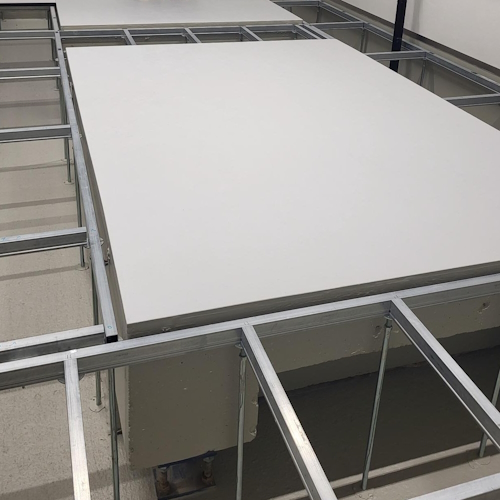

Sensitive Precision Machinery
Protection of sensitive precision machines against vibrations caused by surrounding workshop operations.

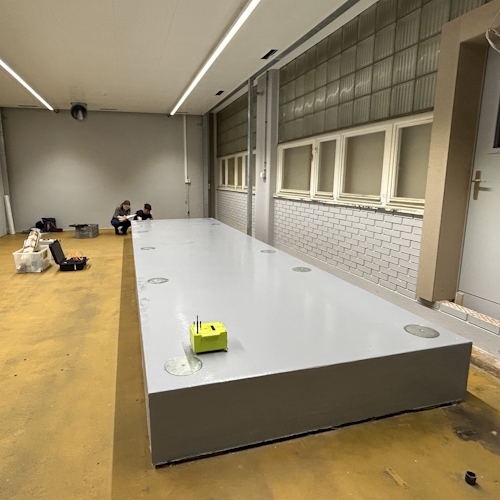

Research Facilities
References
Eiranranta
Helsinki, Finnland
Heat pump system
ParkInnovAare
Villigen, Schweiz
Highly sensitive testing facilities
Darlington
Ontario, Kanada
Spring-mounted table foundation for a large turbine (1000 MW)
